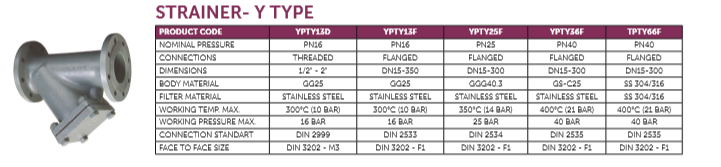

Strainer Filter - Y Type
PRODUCT TECHNICAL INFORMATION
Operating Data
| Product Code | YPTY13D | YPTY13F | YPTY25F | YPTY36F | TPTY66F |
| NOMINAL PRESSURE | PN16 | PN16 | PN25 | PN40 | PN40 |
| DIMENSIONS | 1/2" - 2" | DN15-350 | DN15-300 | DN15-300 | DN15-300 |
| CONNECTIONS | THREADED | FLANGED | FLANGED | FLANGED | FLANGED |
| BODY MATERIAL | GG25 | GG25 | GGG40.3 | GS-C25 | 40 BAR |
| WORKING PRESSURE MAX. | 16 BAR | 16 BAR | 25 BAR | 40 BAR | 400°C (21 BAR) |
| WORKING TEMP. MAX. | 300°C (10 BAR) | 300°C (10 BAR) | 350°C (14 BAR) | 400°C (21 BAR) | DIN 2535 |
| CONNECTION STANDART | DIN 2999 | DIN 2533 | DIN 2534 | DIN 2535 | DIN 3202 - F1 |
| FACE TO FACE SIZE | DIN 3202 - M3 | DIN 3202 - F1 | DIN 3202 - F1 | DIN 3202 - F1 | SS 304/316 |
| FILTER MATERIAL | STAINLESS STEEL | STAINLESS STEEL | STAINLESS STEEL | STAINLESS STEEL | SS 304/316 |
