Standards
| TS EN ISO 24373
|
Cu6180 (CuAl10Fe) |
| EN ISO 24373
|
Cu6180 (CuAl10Fe) |
| AWS A5.7
|
ER CuAI-A2 |
Chemical Composition of Welding Wire% (Typical)
| Al
|
9.00 |
| Si
|
<0.10 |
| Cu
|
Rest |
| Fe
|
<1.50 |
Typical Base Material Grades
- CuAI 5, CuAI 8, G-CuAI 8 Mn
Mechanical Properties
| Yield Strength (N/mm²) |
Tensile Strength (N/mm²) |
Elongation ((Lo=5do) (%)) |
Hardness (as welded) (HB) |
| 410 |
590 |
45 |
145 |
Features and Applications

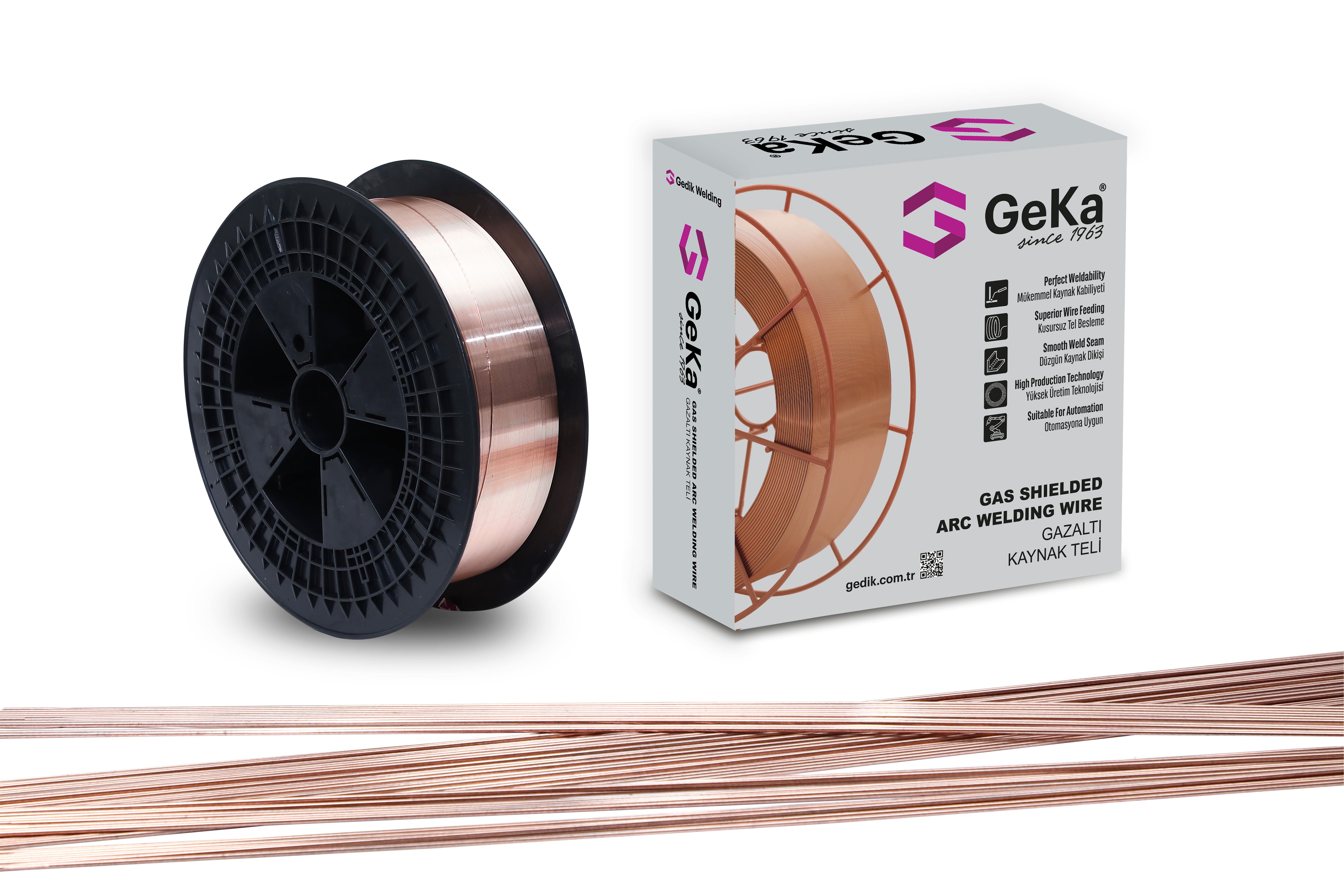

- It is Cu- AI MIG welding wire
- It is used for welding of sea water vaporizers, door accessories, rolling equipment, CuAI 5, CuAI 8, G-CuAI 8 Mn
Welding Positions
Welding Method
Operating Data
| Product Code |
Package Weight (Kg) |
Diameter (mm) |
Diameter (inch) |
| 6031100042 |
15 |
Ø1.00 |
Ø0.040 |
| 6031100043 |
15 |
Ø1.20 |
Ø0.047 |
| 6031100044 |
15 |
Ø1.60 |
Ø0.062 |
Approvals
