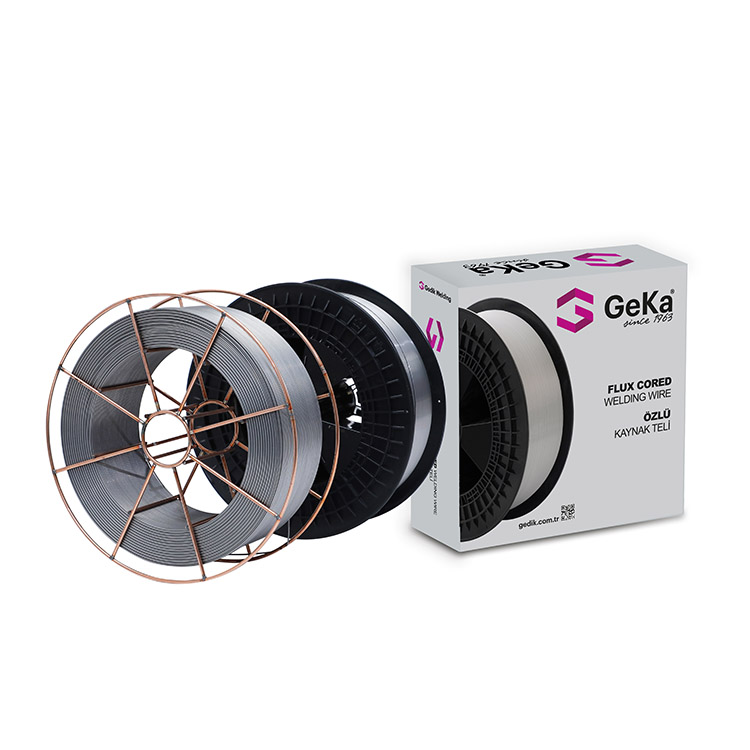

Cored Welding Wire - ELCOR R 110
Standards
| EN ISO 18276-A
|
: T 69 4 Mn2.5Ni P C 1 |
| TS EN ISO 18276-A
|
: T 69 4 Mn2.5Ni P C 1 |
| AWS A5.29
|
E 111 T1 - GC |
Chemical Composition of Weld Metal % (Typical)
| C |
Si |
Mn |
Ni |
Mo |
| 0.08 |
0.50 |
1.70 |
2.10 |
0.20 |
Typical Base Material Grades
- S690Q , L690M, N-A-XTRA, USS-T1, BH 70V, HY100,
- ASTM A514Gr.F
Mechanical Properties
| Heat Treatment |
Yield Strength (N/mm²) |
Tensile Strength (N/mm²) |
Impact Strength (ISO-V/-40°C) |
Elongation ((Lo=5do) (%)) |
| AW |
min. 690 |
770 - 940 |
min. 47 J |
min. 17 |
| AW: as welded |
Features and Applications
- Rutile type flux cored wire which provides an exceptionally smooth and stable arc, low spatter.
- Applications of single and multipass welding of high strength low alloy steels such as HY-80 and HY-100
- Shielding gas: CO2
Welding Positions
Welding Method
Operating Data
| Product Code |
Package Type |
Weight (Kg) |
Diameter (mm) |
Diameter (inch) |
| 3010500354 |
BS 300 |
15 |
Ø1.20 |
Ø0.047 |
Approvals
