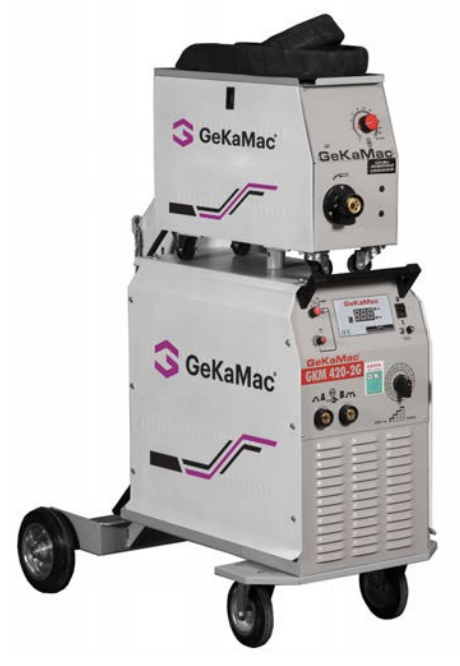

Welding Machine - GKM 420-2G
Symbols
Features and Applications
- Gas cooled MIG/MAG welding machine, which provides easy access to the work area by separating wire feeding unit
- Voltage calibration with 18 stages between 30-420 a welding current range
- Wire feeding system with 4 rolls
- High efficiency with 2 stage choke coil
- Ideal for welding metals sheets up to 15 mm
- Wire feeding speed adjustment within 1-22 mt/min range
- 2-4 trigger selections
- Digital current and voltage indicators
Warranty
- GEDİK Welding provides full support for after sales services. 2 year warranty.
Wire Feeder Unit
| WireTypes | Fe/FC |
|---|---|
| Usable Wire Diameters | 0.8 / 1.0 / 1.2 |
| Wire Feeding Speed | 22 max |
| Dimensions (L*W*H) | 630 / 460 / 230 |
| Weight (Kg) | 15 |
Technicial Specifications
| Input Voltage |
|---|
| 3 Phase, 50/60,380 V |
| 17.5 |
| 42 |
| 13-43 |
| 30-420 |
| 280 / 360 / 420 |
| EN 60974-1 / EN 60974-5 / EN 60974-10 / S |
| 23 |
| H |
| 1075 / 500 / 800 |
| 140 |
