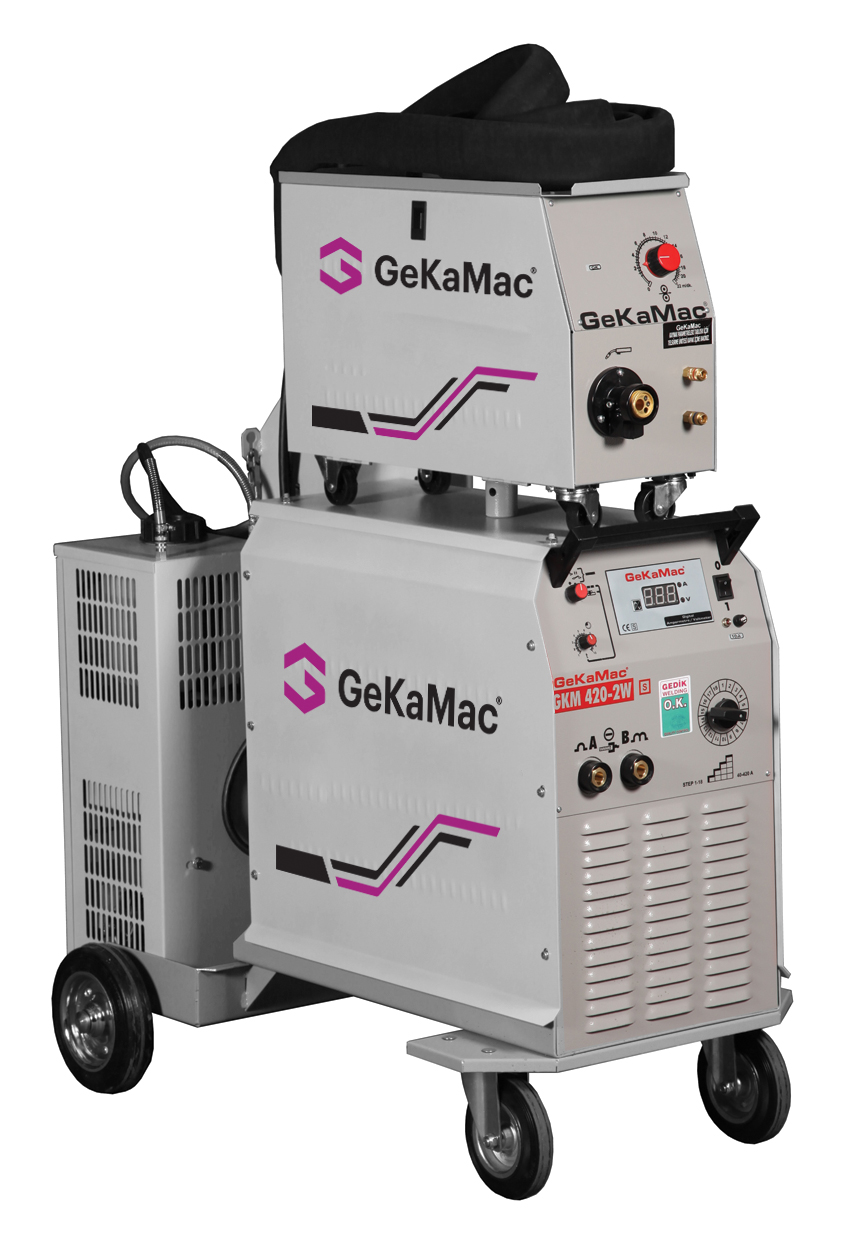

Welding Machine - GKM 420-2W
.jpg)
Features and Applications
- Water cooled MIG/MAG welding machine, which provides easy access to the work area by separating the wire feeding unit
- Voltage calibration with 18 stages between 30-420 A welding current range
- Wire feeding system with 4 rolls
- High efficiency with 2 stage choke coil
- Ideal for welding metal sheets up to 15 mm
- It is preferred by heavy industrial companies
- Wire feeding speed adjustment within 1-22 mt/min range
- 2-4 trigger selection
- Digital current and voltage indicator
Symbols
Wire Feeder Unit
| WireTypes | Fe / FC |
|---|---|
| Usable Wire Diameters | 0.8 / 1.0 / 1.2 |
| Wire Feeding Speed | 22 max |
| Dimensions (L*W*H) | 630 / 460 / 230 |
| Weight (Kg) | 15 |
Technicial Specifications
| Input Voltage |
|---|
| 3 Phase, 50/60 Hz, 380 V |
| 17.6 |
| 42 |
| 13-43 |
| 30-420 |
| 280 / 360 / 420 |
| EN 60974-1 / EN 60974-5 / EN 60974-10 / S |
| 23 |
| H |
| 1075 / 500 / 800 |
| 162 |
