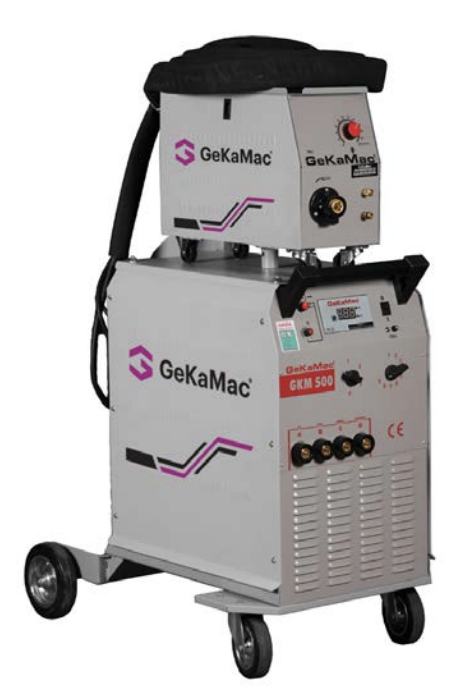

Welding Machine - GKM 500-2G
Symbols
Features and Applications
- Air cooled MIGI/MAG welding machine, which gives easy access to the work area by separating the wire feeding unit
- Voltage calibration with 36 (4x9) stages between 40-500 A welding current range
- Wire Feeding system with 4 rolls
- High efficiency with 4 stage choke coil
- Ideal for welding metal sheets up to 40 mm
- It is preterred by heavy industrial companies
- Wire feeding speed adjustment within 1-22 mt/min range
- 2-4 trigger selection
- Digital current and voltage indicator
Wire Feeder Unit
| WireTypes | Fe / FC |
|---|---|
| Usable Wire Diameters | 0.8 / 1.0 / 1.2 / 1.6 |
| Wire Feeding Speed | 22 max |
| Dimensions (L*W*H) | 630 / 460 / 230 |
| Weight (Kg) | 15 |
Technicial Specifications
| Input Voltage |
|---|
| 3 Phase, 50/60 Hz, 380 V |
| 27.5 |
| 63 |
| 16-57 |
| 40-500 |
| 400/500 |
| EN 60974-1 / EN 60974-5 / EN 60974-10 / S |
| 23 |
| H |
| 1100 / 510 / 1440 |
| 211 |
